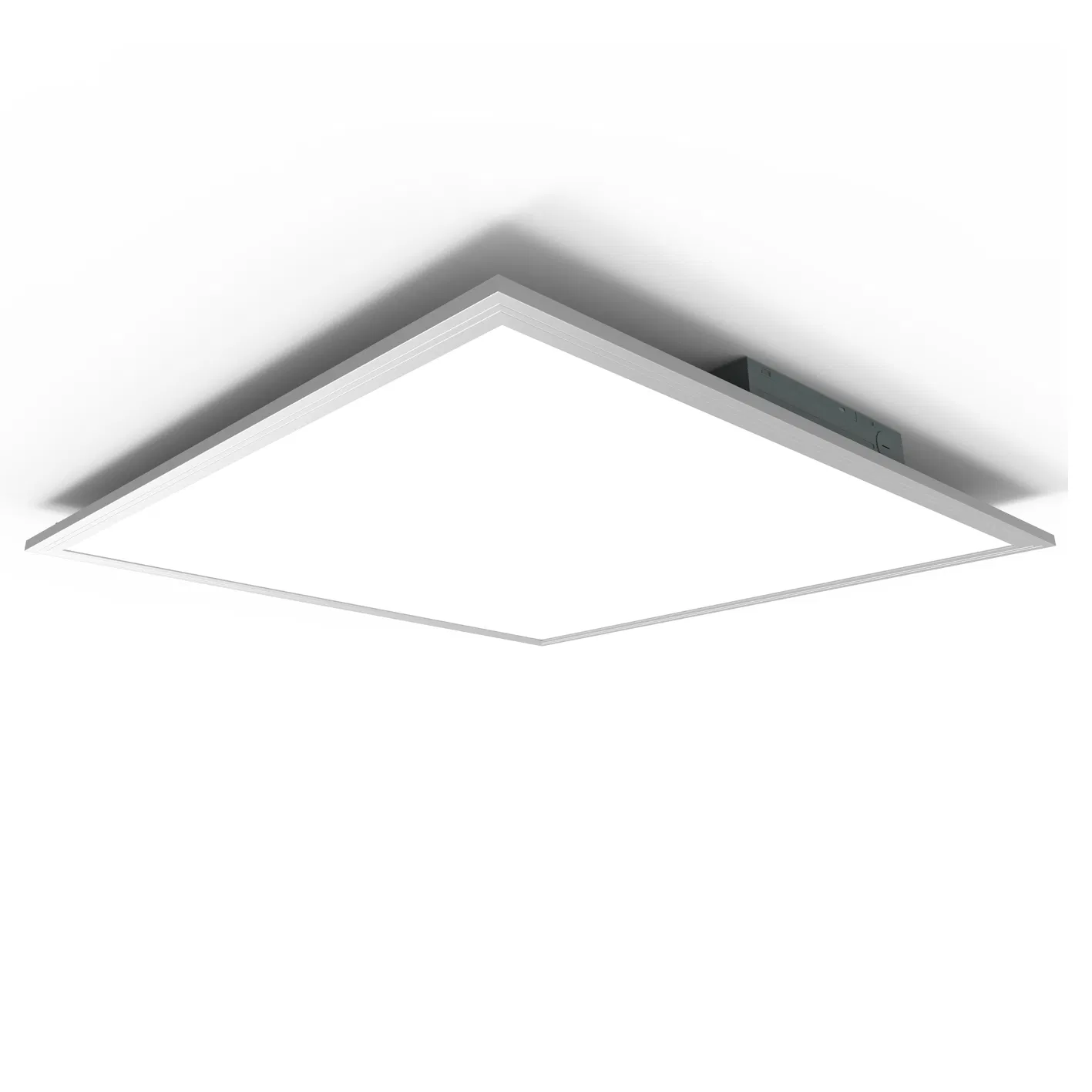

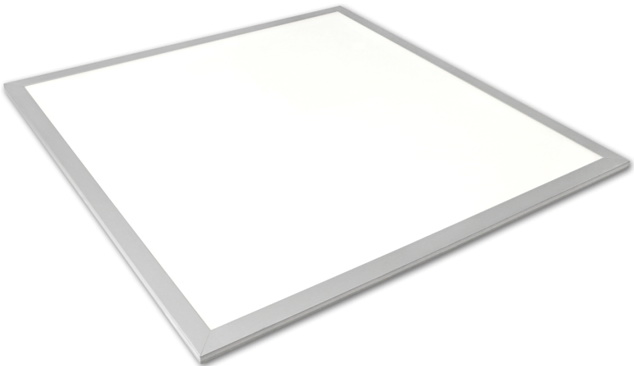

Non-Flickering Square LED Panel Light with Lifud Driver
Product DescriptionThe design is ideal for using in ceiling fixtures 1. Perfect world-class LED technology2. Makes it really crazy super bright3. The Same Model, The Lower Price4. Use mostly in commercial and residential applications 5. Superly easy to installWhat should be a good led panel light? H......
Send Inquiry
Product Description
Product Description
The design is ideal for using in ceiling fixtures
1. Perfect world-class LED technology
2. Makes it really crazy super bright
3. The Same Model, The Lower Price
4. Use mostly in commercial and residential applications
5. Superly easy to install
What should be a good led panel light?
Higher power and light uniformity
LED panels reinforced frame for extra durability
Thermoplastic coating for extreme scratch resistance
Quick connect system operates from 100v to 277v
Product Advantages

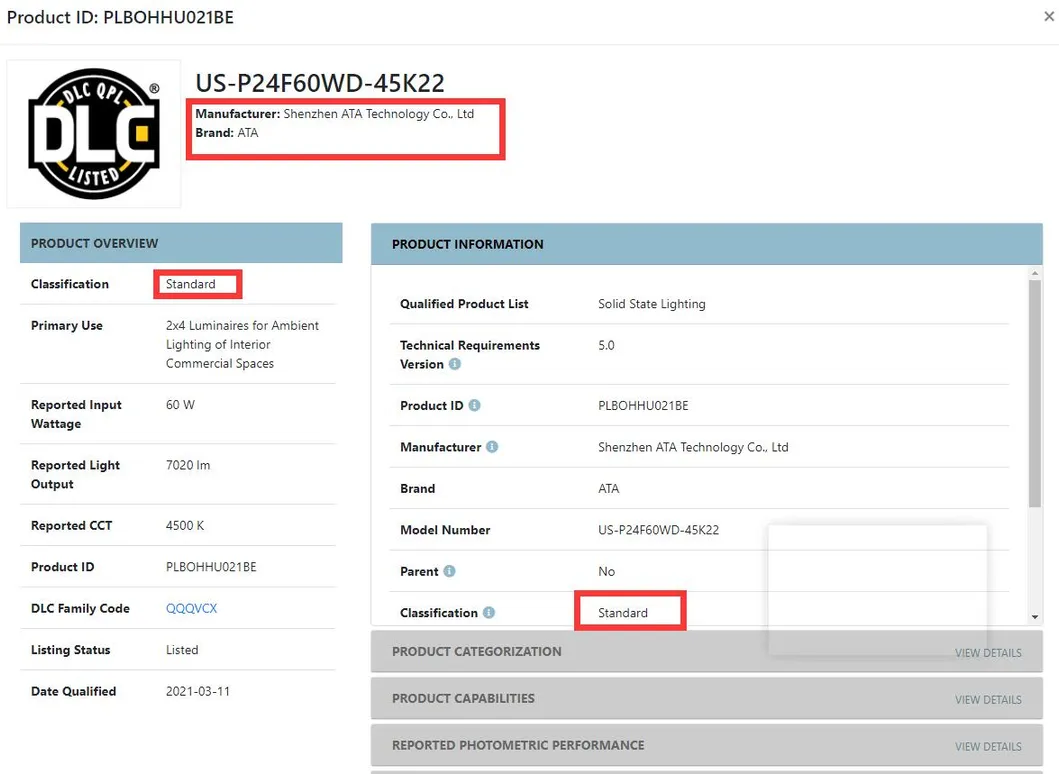

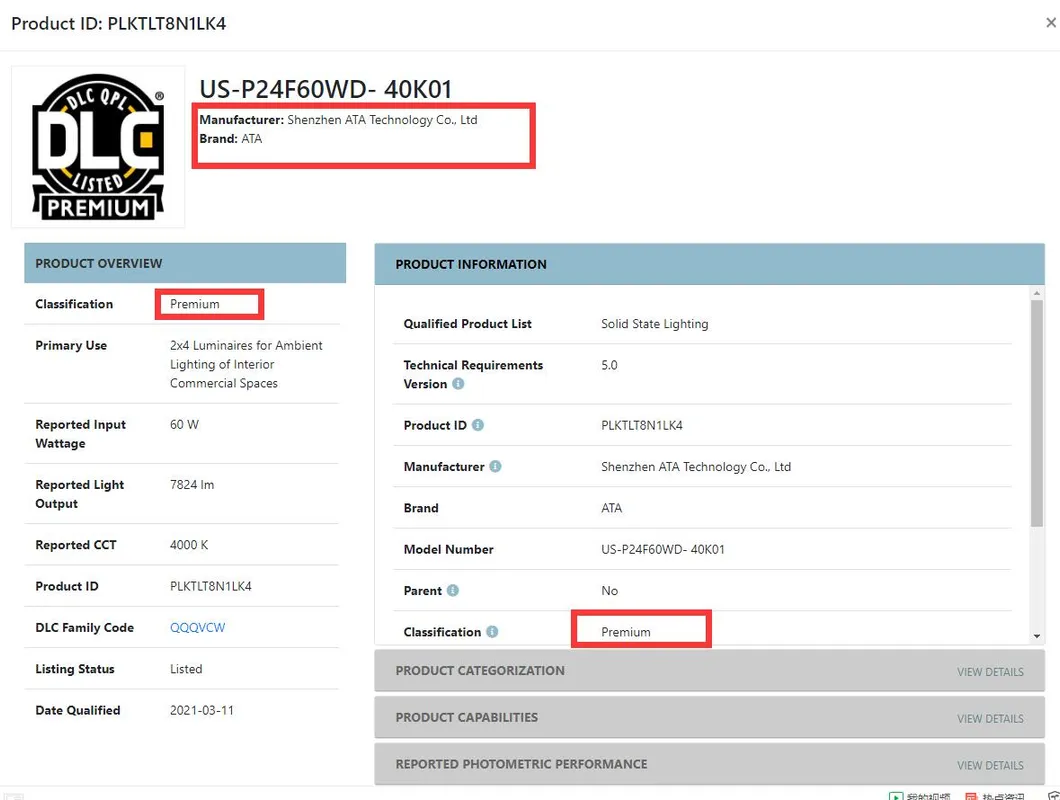

1. UL cUL DLC 5.0 LED Panel Light.
2. 125lm/W, could apply for government rebate.
3. Besides 2*2ft, 1*4ft, 2*4ft, 1*1ft 297*297mm is also available!
4. Perfect Light Uniformity.

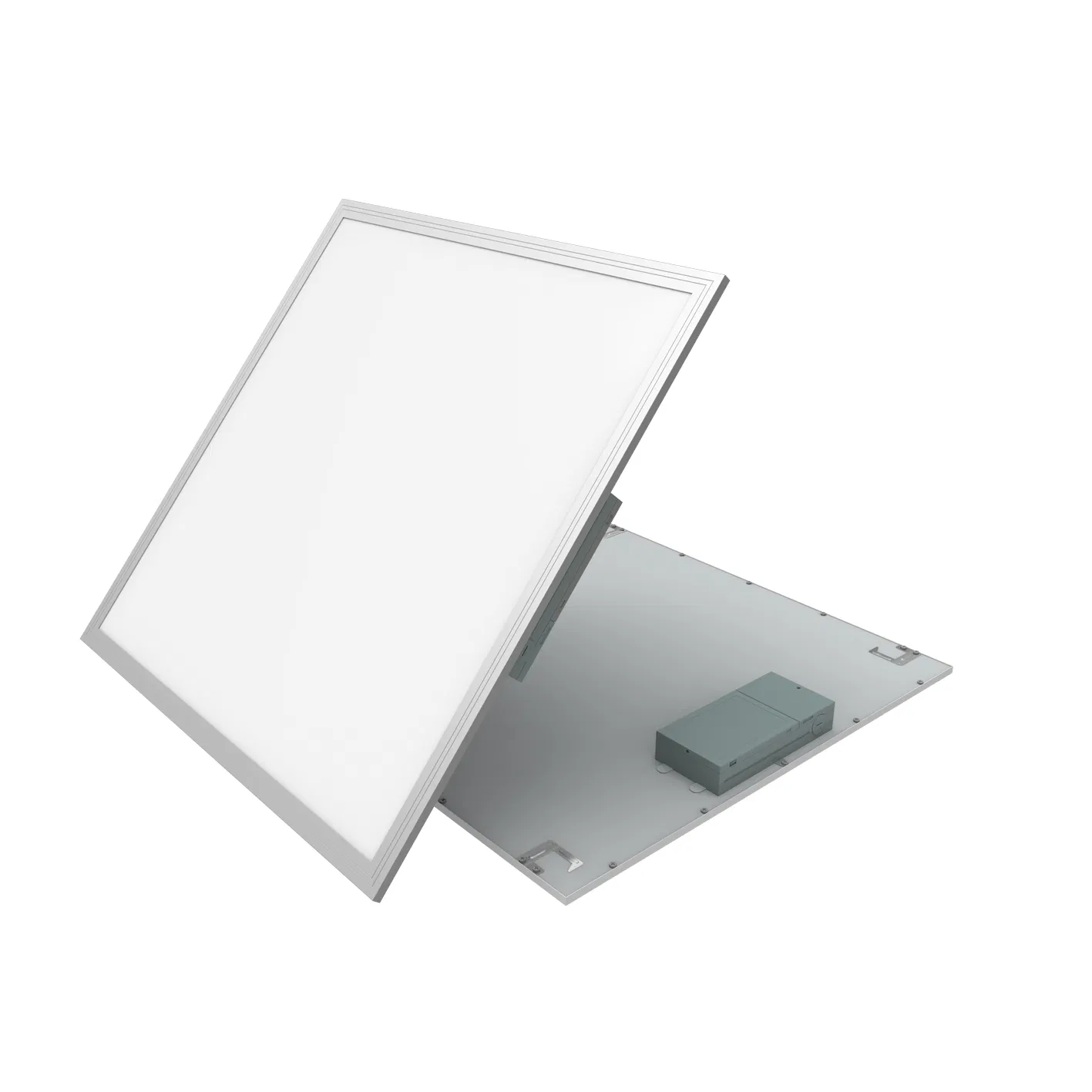

5. Fire-rated junction box design with correct wiring, easy for installation.
6. Illuminate any room and ceiling up/down LED panel light LED panel light is perfect for commercial, residential, decorative applications like offices, pool table, retail shop, supermarkets, schools, hotels, restaurants painted ceiling illumination, workshop, hospital, homes etc.
7. The light provides ceiling accent lighting, usable downlighting simultaneously
Its transparent polycarbonate lens with frosted center delivers. Smooth illumination without visible bulbs or hot spots
8. LED light emit 9, 000 lumens of natural white illumination.
9. Energy-efficient LED panel lasts 5 times longer than fluorescent panels. Operates within a wide 100-277 VAC range. Can be linked to additional panels
Technical Specifications
Installation
1. Embedded without accessories
2. Suspending with wirerope
3. Surface mounting fixture with frame
4. Earthquake proof with hook
Applications
hotel, restaurant, elevator, wedding photography, bank, residential house and indoor lighting, high-end office, meeting room, villa, hotel, entertainment place, metro stations, shopping malls, kitchen, bath-room,emergency lighting, industrial lighting, airport, hospital, school, office, factory, institution buildings, places where energy saving lighting and high color rendering index lighting are needed.
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Please feel free to send us your inquiry, We are at your service any time!
The design is ideal for using in ceiling fixtures
1. Perfect world-class LED technology
2. Makes it really crazy super bright
3. The Same Model, The Lower Price
4. Use mostly in commercial and residential applications
5. Superly easy to install
What should be a good led panel light?
Higher power and light uniformity
LED panels reinforced frame for extra durability
Thermoplastic coating for extreme scratch resistance
Quick connect system operates from 100v to 277v
Product Advantages
1. UL cUL DLC 5.0 LED Panel Light.
2. 125lm/W, could apply for government rebate.
3. Besides 2*2ft, 1*4ft, 2*4ft, 1*1ft 297*297mm is also available!
4. Perfect Light Uniformity.
5. Fire-rated junction box design with correct wiring, easy for installation.
6. Illuminate any room and ceiling up/down LED panel light LED panel light is perfect for commercial, residential, decorative applications like offices, pool table, retail shop, supermarkets, schools, hotels, restaurants painted ceiling illumination, workshop, hospital, homes etc.
7. The light provides ceiling accent lighting, usable downlighting simultaneously
Its transparent polycarbonate lens with frosted center delivers. Smooth illumination without visible bulbs or hot spots
8. LED light emit 9, 000 lumens of natural white illumination.
9. Energy-efficient LED panel lasts 5 times longer than fluorescent panels. Operates within a wide 100-277 VAC range. Can be linked to additional panels

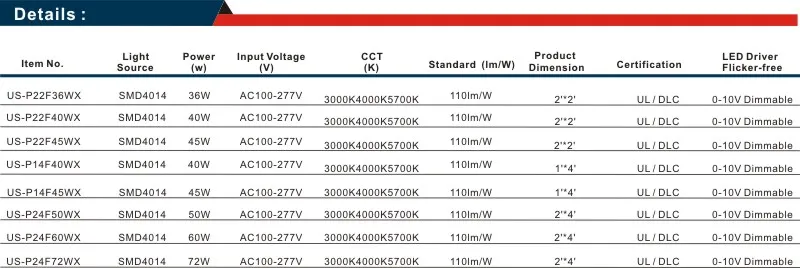

Technical Specifications
| Name | LED Panel Light |
| Light source | SMD4014 / 2835, LM80 |
| High efficiency | 110LM/W 125lm/w |
| Driver efficiency | >89% |
| Parameters | CRI(Ra)>83, PF>0.95, THD<15%, UGR<19 |
| Color | 3000K, 4000K,4500K, 5000K, 5700K |
| Working Voltage | AC100~277V / 347V |
| Power | 20w/30w/36w/40w/45w/50w/60w/72w |

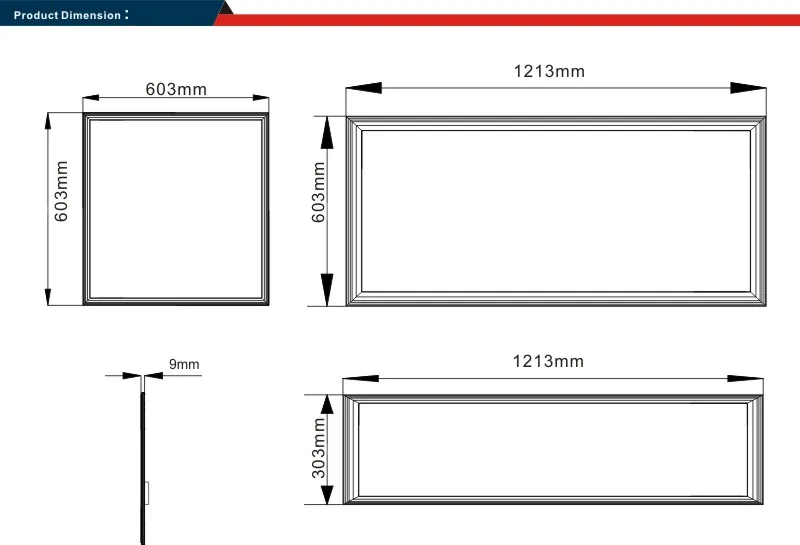

| Size (mm) | 297X297/603X603/303X1213/603X1213mm |
| Frame color | Silver & white |
| Function | 0-10V dimmable, daylight & microwave sensor, Emergency |
| Dimmable mode | 0-10V, PWM |
| Beam angle | 120 degree |
| Light transmission rate | 99% |
| Material | AL+PMMA Diffuser |
| Installation methods | Embedded, Suspending, Roof mount, Latch catches, Reverse buckling |
| Accessories | steel wire rope, screw, aluminium structure, Embedded installation doesn't need accessories |
| Lighting emitting type | side & back lighting |
| Certification | UL, cUL, DLC5.0, TUV, GS, CB, SAA, FCC, CE, RoHS |
| Warranty | 5 years |

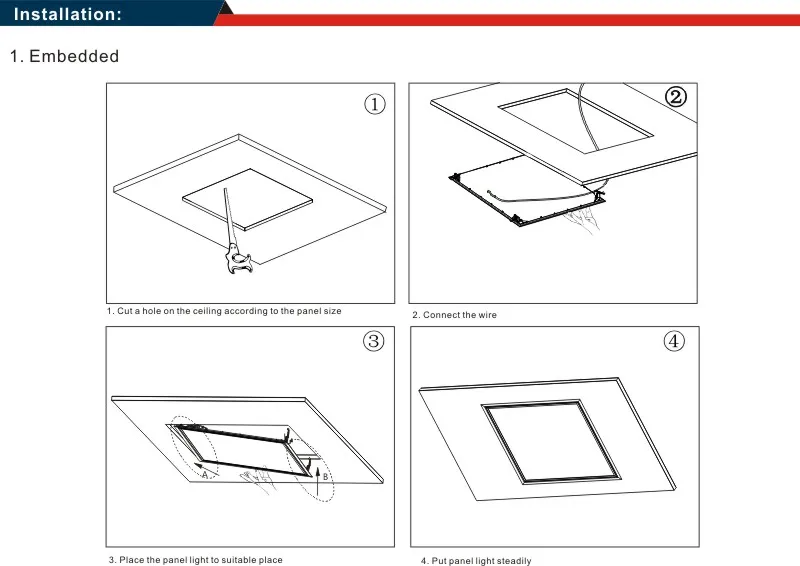

Installation1. Embedded without accessories

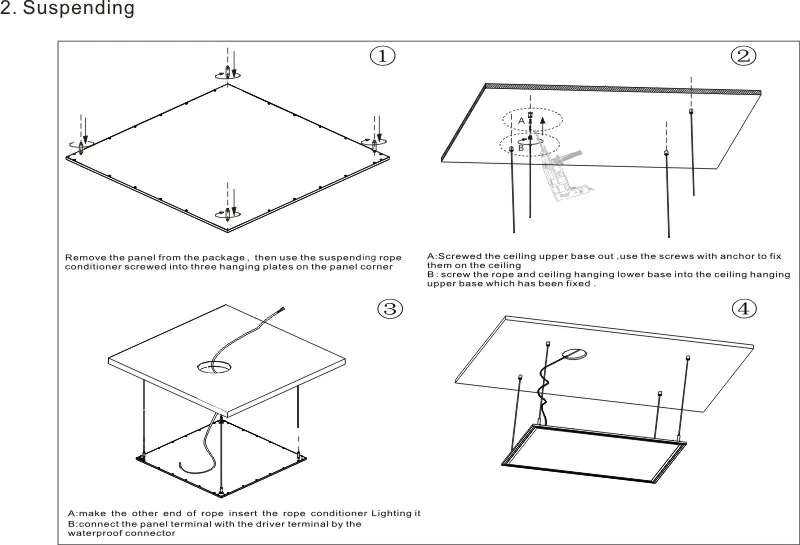

2. Suspending with wirerope
3. Surface mounting fixture with frame
4. Earthquake proof with hook

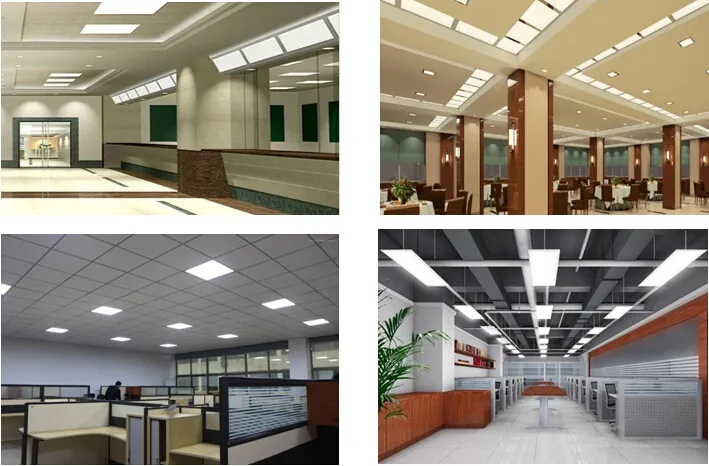

Applications
hotel, restaurant, elevator, wedding photography, bank, residential house and indoor lighting, high-end office, meeting room, villa, hotel, entertainment place, metro stations, shopping malls, kitchen, bath-room,emergency lighting, industrial lighting, airport, hospital, school, office, factory, institution buildings, places where energy saving lighting and high color rendering index lighting are needed.
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
