LED Parking Area Lamp Floodlight 200W Street Light Parking Lot Shoebox
200W Parking Lot Shoebox Light Parking Area Lamp Floodlight Street Light Features: 1. Advanced technology: Famous led chips and superly reliable Mean Wel power supply are used, realizing long-term reliable and stable working without failure and maintenance, it's really a fit and forget product......
Send Inquiry
Product Description
200W Parking Lot Shoebox Light Parking Area Lamp Floodlight Street Light
Features:
1. Advanced technology: Famous led chips and superly reliable Mean Wel power supply are used,
realizing long-term reliable and stable working without failure and maintenance, it's really a fit and forget product.
2. High light efficiency up to 130 lm/W, ETL and DLC4.0 approval.
3. Top quality aluminium die cast body, and patented cooling body design, simple and elegant style.
4. Reasonable light distribution: wide lighting angle, and ensure an ideal uniformity of brightness on the road surface,
keep the LED lighting efficiency on a high level, no glare;
5. Long lifespan: up to 50,000 hours, is 5-10 times working life than a traditional light source;
6. Photocell Control Available (Option);
7. Low energy consumption, 75-300W led shoebox light can be direct replacement for up to 250-1000W HID/HPS/MH etc.
8. LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas,
sidewalks, squares, parks, gardens, schools, residential areas etc.
Product Details:
Number of LEDs (pcs): 256pcs
LED Light Source:sana LED / CRE XTE/ SAMSNG 351B
Body Color: Black/Brown
Total power consumption of LEDs (W):200W
Color temperature (K):2000k/3000k/4000k/5000k/6000k
Luminous flux (Lm):130lm/W
Color: Cool White/Natural White/Warm White

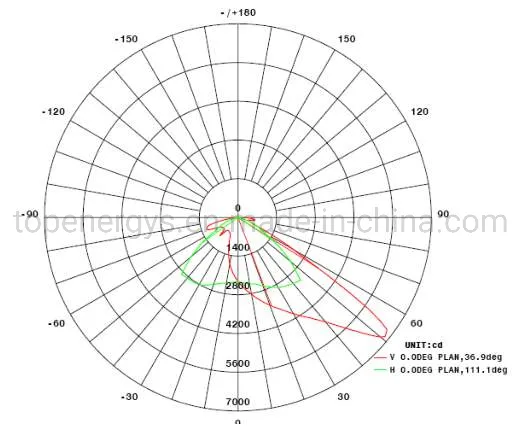

Beam angle (degree):70*140°
Color rendering index (CRI) : >80
Rated voltage (V AC/V DC): AC90-305V
Frequency range (Hz): 50-60Hz
Working environment: outdoor
Body temperature: less than 65 Celsius
Material of body: Aluminium
IP rating: IP65
Optimal Operation Temp: -40~60 Celsius Degree
Dimensions: 733*343*90mm
Net Weight: 9.6Kg
Suitable Light Pole HoleΦ(mm):62mm
Life span: 50,000hours
Certificate: ETL DLC CE RoHS
Warranty (years): 5 years

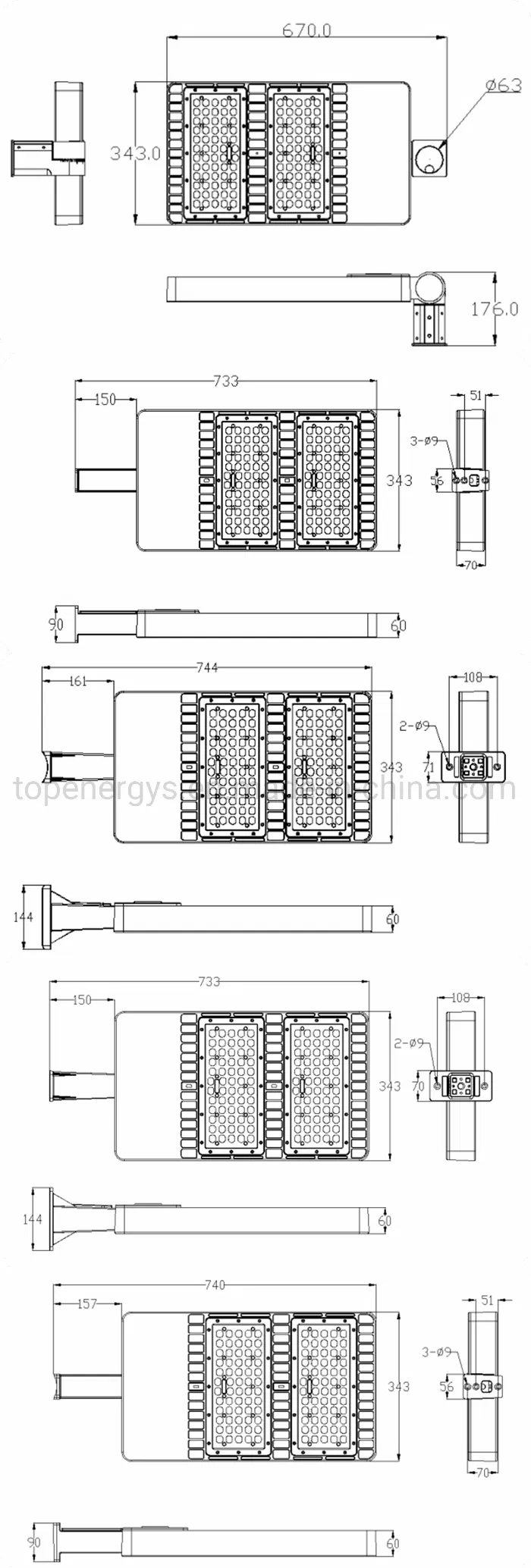

Outline Dimensions(mm):

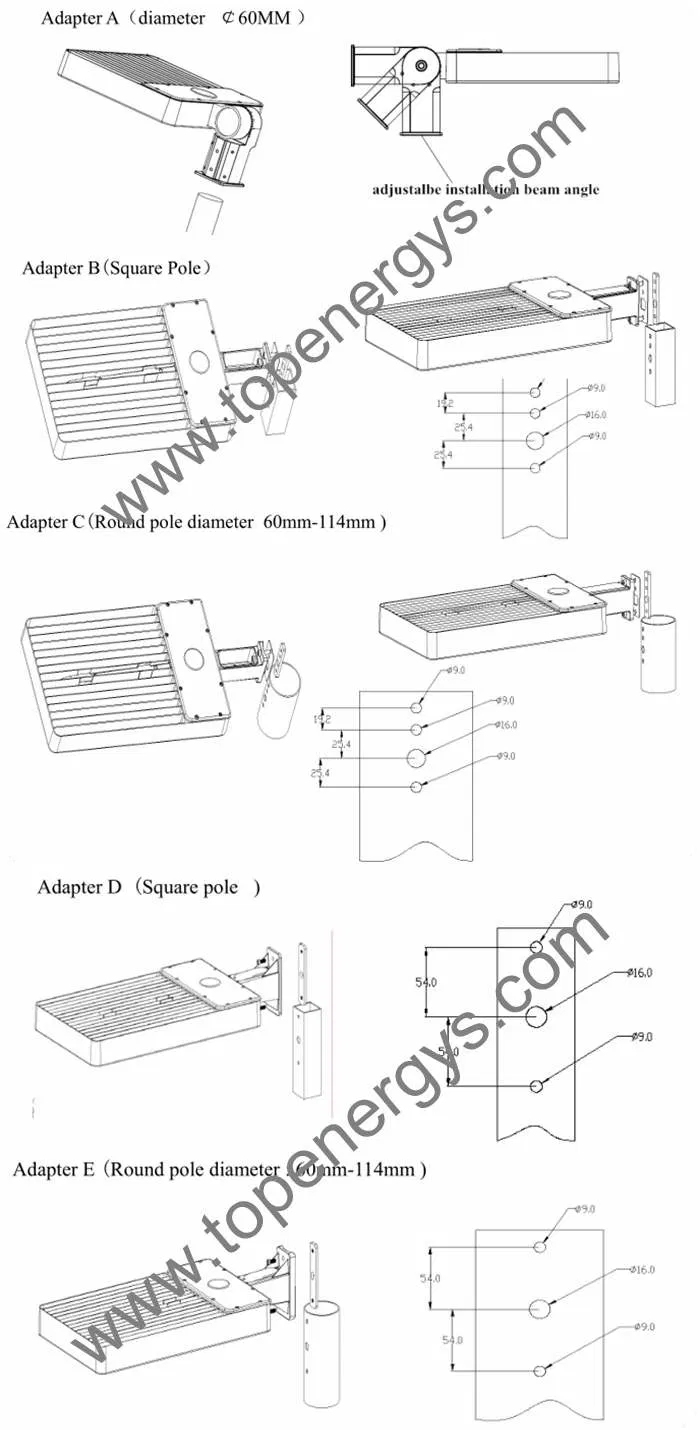

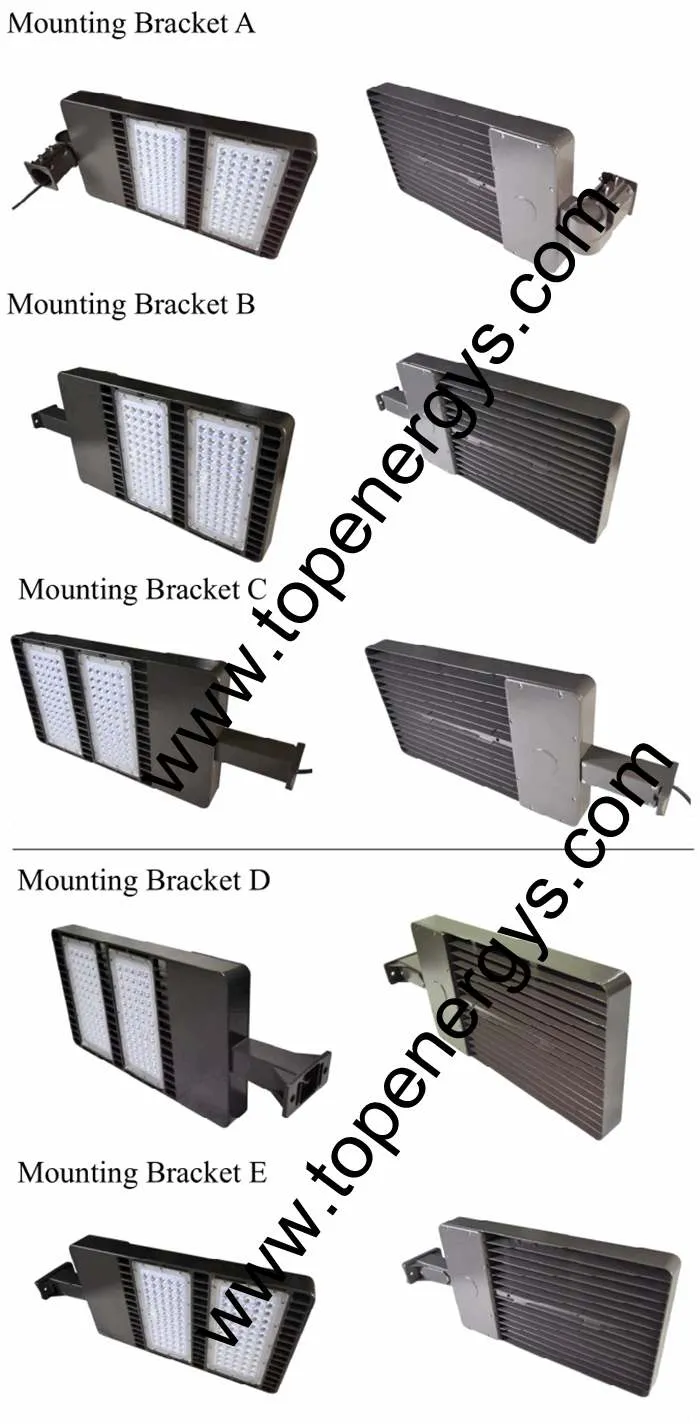

Installation:

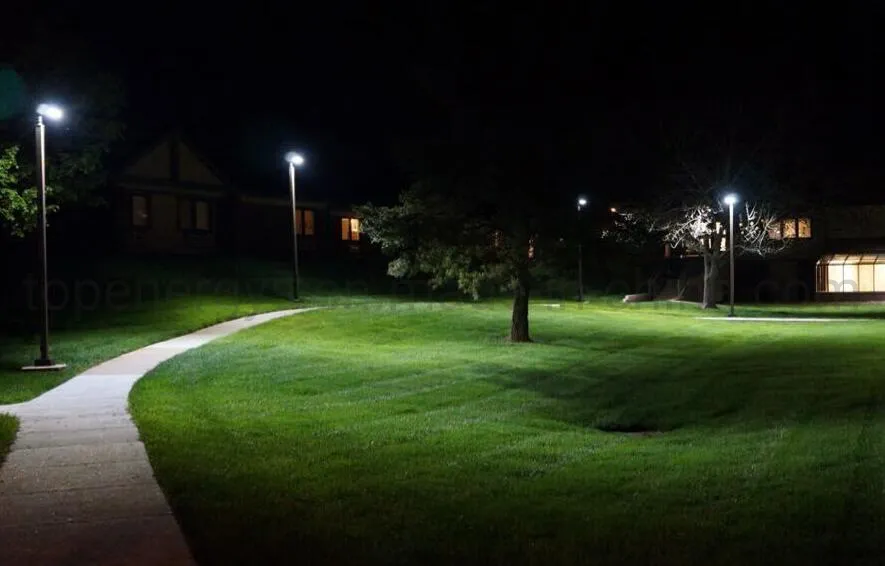

Applications:
LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas, sidewalks, squares,
parks, gardens, schools, residential areas etc.
Package:
1.Qty/CTN:1pc
2.Gross weight: 7.75kg
3.Carton Size: 590*380*160mm
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 7-15 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products,
we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Features:
1. Advanced technology: Famous led chips and superly reliable Mean Wel power supply are used,
realizing long-term reliable and stable working without failure and maintenance, it's really a fit and forget product.
2. High light efficiency up to 130 lm/W, ETL and DLC4.0 approval.
3. Top quality aluminium die cast body, and patented cooling body design, simple and elegant style.
4. Reasonable light distribution: wide lighting angle, and ensure an ideal uniformity of brightness on the road surface,
keep the LED lighting efficiency on a high level, no glare;
5. Long lifespan: up to 50,000 hours, is 5-10 times working life than a traditional light source;
6. Photocell Control Available (Option);
7. Low energy consumption, 75-300W led shoebox light can be direct replacement for up to 250-1000W HID/HPS/MH etc.
8. LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas,
sidewalks, squares, parks, gardens, schools, residential areas etc.
Product Details:
Number of LEDs (pcs): 256pcs
LED Light Source:sana LED / CRE XTE/ SAMSNG 351B
Body Color: Black/Brown
Total power consumption of LEDs (W):200W
Color temperature (K):2000k/3000k/4000k/5000k/6000k
Luminous flux (Lm):130lm/W
Color: Cool White/Natural White/Warm White
Beam angle (degree):70*140°
Color rendering index (CRI) : >80
Rated voltage (V AC/V DC): AC90-305V
Frequency range (Hz): 50-60Hz
Working environment: outdoor
Body temperature: less than 65 Celsius
Material of body: Aluminium
IP rating: IP65
Optimal Operation Temp: -40~60 Celsius Degree
Dimensions: 733*343*90mm
Net Weight: 9.6Kg
Suitable Light Pole HoleΦ(mm):62mm
Life span: 50,000hours
Certificate: ETL DLC CE RoHS
Warranty (years): 5 years
| Model | CCT | Ra | Lumen | power | size | LEDs | N.W |
| TP-SS-40 | 5000K | ≥70 | 4000LM | 40±5W | 275*364*176 | 20 | 3.9kg |
| TP-SS-60 | 5000K | ≥70 | 6000LM | 60±5W | 275*364*176 | 30 | 4.2kg |
| TP-SS-80 | 5000K | ≥70 | 8000LM | 80±5W | 343*432*176 | 36 | 5.7kg |
| TP-SS-100 | 5000K | ≥70 | 10000LM | 100±5W | 343*432*176 | 48 | 5.8kg |
| TP-SS-120 | 5000K | ≥70 | 12000LM | 120±5W | 343*432*176 | 60 | 6.0kg |
| TP-SS-200 | 5000K | ≥70 | 19000LM | 200±5W | 733*343*90 | 96 | 9.2kg |
| 3000K ,4000K, 5000K, 6000K Optional | |||||||
| AC100-300V 50/60Hz | |||||||
| PF>0.9 | |||||||
| IP65 level | |||||||
| warranty: 5 years | |||||||
Outline Dimensions(mm):
Installation:
Applications:
LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas, sidewalks, squares,
parks, gardens, schools, residential areas etc.
Package:
1.Qty/CTN:1pc
2.Gross weight: 7.75kg
3.Carton Size: 590*380*160mm
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 7-15 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products,
we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
