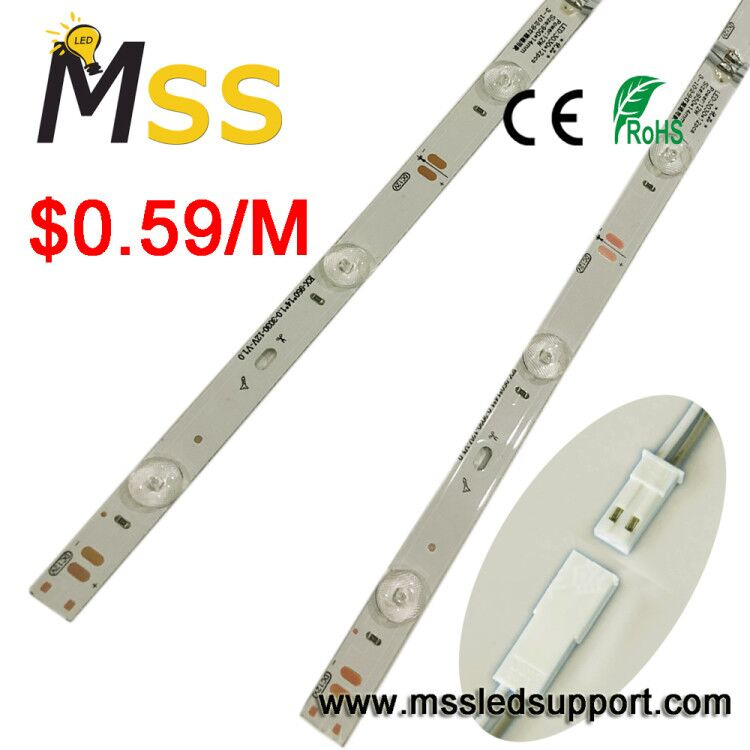

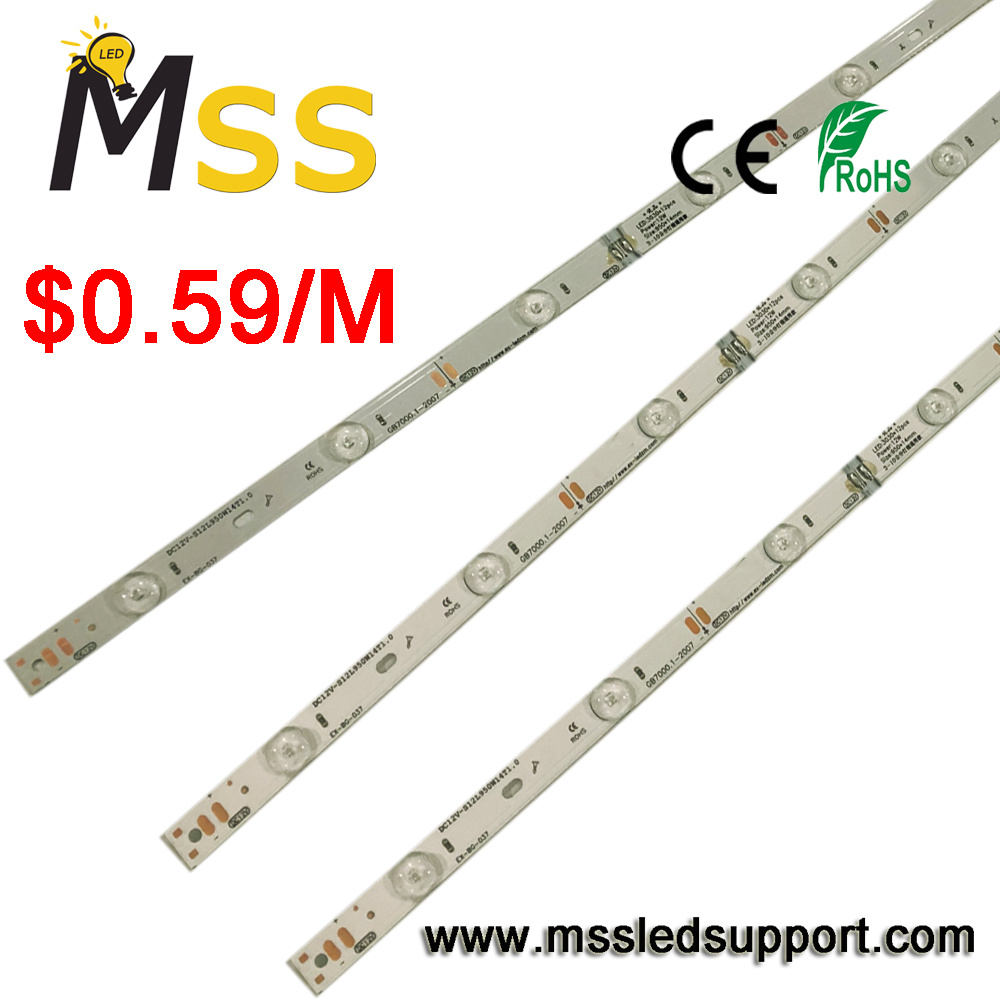

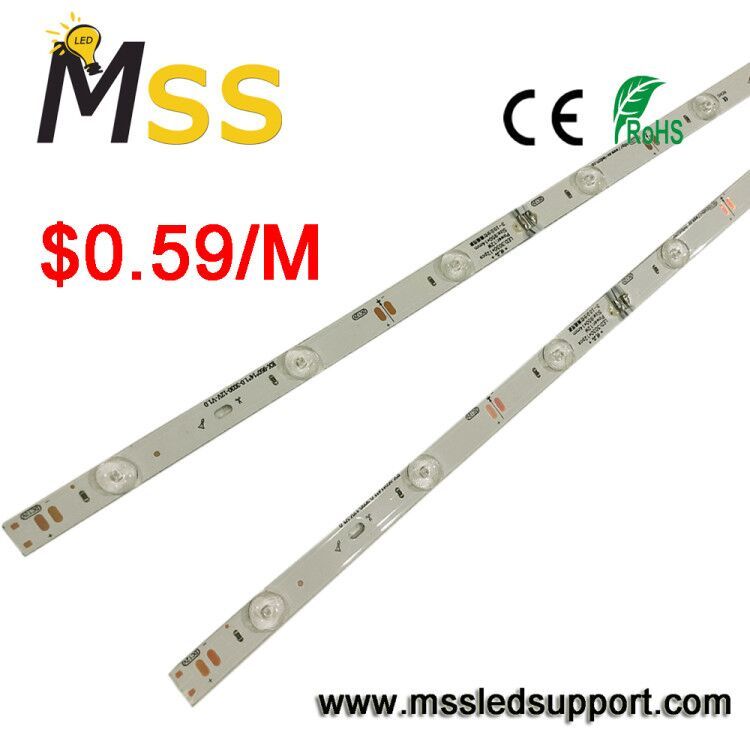

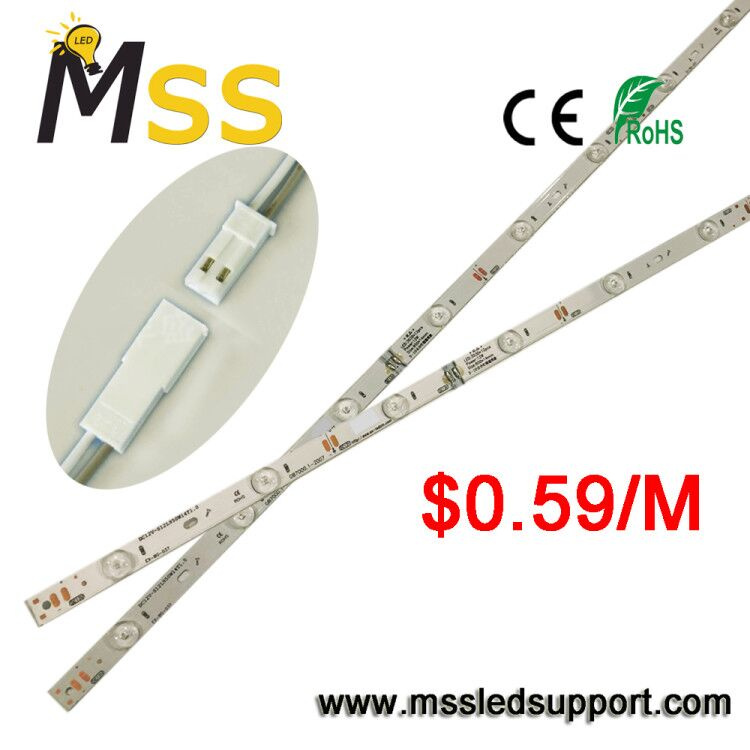

SMD 3030 High Power LED Strip LED Rigid Bar for 3mm Light Box
SMD 3030 High Power LED Strip LED Rigid Bar for 3mm light boxFeatures1. Constant Current Technology (CCT),2. The Aluminum plate for heat dissipation3. Energy saving,Environment friendly4. Long life span5. DIM for PWMDimensionsRemark:The pitch of the light-bar is variable.Environmental and Applicatio......
Send Inquiry
Product Description
SMD 3030 High Power LED Strip LED Rigid Bar for 3mm light box
Features
1. Constant Current Technology (CCT),
2. The Aluminum plate for heat dissipation
3. Energy saving,Environment friendly
4. Long life span
5. DIM for PWM
Dimensions
Remark:The pitch of the light-bar is variable.
Environmental and Application Conditions
Electrical parameters
Optical parameters (module base)
LED module light distribution graph
Attention
Applications
Package
1. Outal carton:65x31x30cm, Inside the carton:707x295mm, PE film:250x125mm.
2. 12pcs per chain,4pcs chain in one Inside the carton . (48 pcs in one layer).
3. 10 layers in one outal carton . ( 480 pcs in one outal carton).
Features
1. Constant Current Technology (CCT),
2. The Aluminum plate for heat dissipation
3. Energy saving,Environment friendly
4. Long life span
5. DIM for PWM

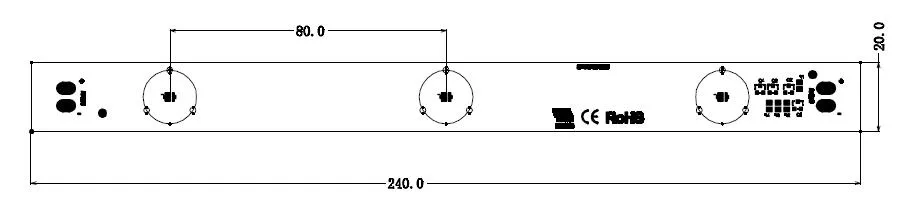

Dimensions
Remark:The pitch of the light-bar is variable.
Environmental and Application Conditions
| Ambient temperature range (TA on free air) | -25…..+55ºC |
| Operating (case) temperature range (TC) | -25…..+55ºC |
| Storage temperature range | -25…..+65ºC |
| IP rating | IP62 |
Electrical parameters
| Supply voltage range | 24±0.5 VDC |
| Supply Current range (per module) | 150mA |
| Power range (per module) | 3.6W Max |
| ESD protection | Contact 4KV, Air 8KV |
Optical parameters (module base)
| Part No. | Color Range | Flux Range | Beam angle | |||
| Min. CCT or wavelength | Typ. CCT or wavelength | Max. CCT or wavelength | Min. Lumen | Max. Lumen | ||
| LB3X3030-360B240 | 6000 K | 7000 K | 8000 K | 270 lm | 300 lm | 170° |

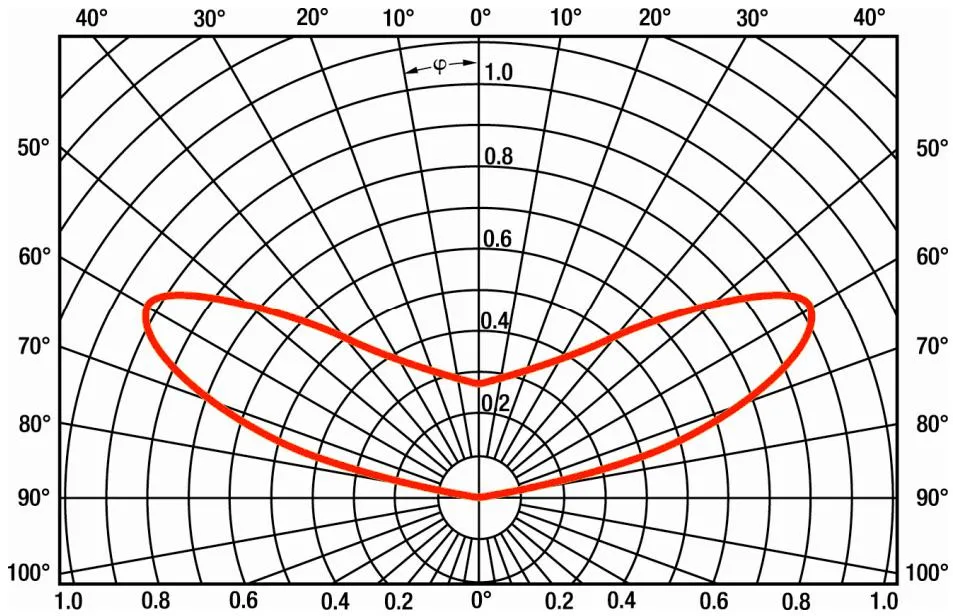

LED module light distribution graph
Attention
1. Max. number of modules of one chain is 10pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.More brightness is obtained if distances between LED modules are reduced.
3. The LED module itself and all its components may not be mechanical stressed.
4. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
5. The design of the housing should be according to the IP standards in the application.
If surge protection structure not within power supplier, a lightening protector should be needed additionally.Applications

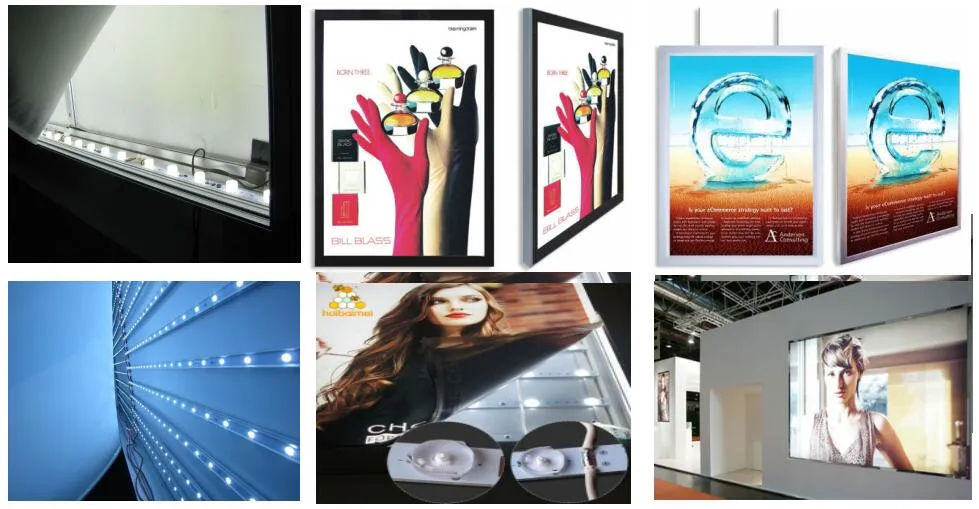

1. Commercial standing lighting
2. Light box lighting
3. Logo lighting
4. Line/shape lightingPackage
1. Outal carton:65x31x30cm, Inside the carton:707x295mm, PE film:250x125mm.
2. 12pcs per chain,4pcs chain in one Inside the carton . (48 pcs in one layer).
3. 10 layers in one outal carton . ( 480 pcs in one outal carton).
